Aluminium (Rod & Plate)

Lightweight Engineering Metal for Precision Machining, Semiconductor & Industrial Applications | Malaysia

Lim

5/28/20263 min read

Overview

Aluminium is one of the most widely used and versatile engineering metals in the world — and for good reason. Combining an exceptionally favourable strength-to-weight ratio, outstanding corrosion resistance, excellent thermal and electrical conductivity, and remarkable ease of fabrication, Aluminium occupies a unique and irreplaceable position in modern engineering and manufacturing that no other metal can fully replicate at its price point.

First commercially produced in the late 19th century following the development of the Hall-Héroult electrolytic process, Aluminium has since become the second most widely used metal in the world after steel — finding application across virtually every industry from aerospace and automotive to electronics, construction, food processing, and precision engineering. Its naturally forming oxide layer provides inherent corrosion resistance without any surface treatment, while its low density — approximately one third that of steel — makes it the material of choice wherever weight reduction is a critical design requirement alongside structural integrity.

In Malaysia's industrial landscape — spanning precision engineering, semiconductor manufacturing, automotive, construction, and general fabrication — Aluminium rod and plate are among the most consistently demanded engineering materials. The combination of machinability, corrosion resistance, thermal conductivity, and cost-effectiveness makes Aluminium the default metal specification for a remarkably broad range of components, fixtures, enclosures, and structural applications across Johor's rapidly expanding industrial and manufacturing sectors.

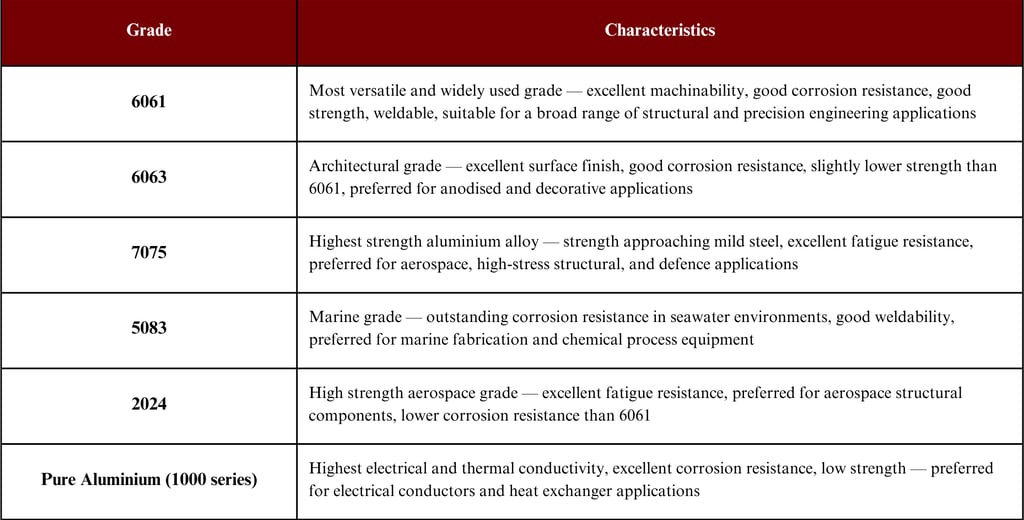

Available Grades

For general precision engineering, CNC machining, and structural fabrication, 6061 is the most widely specified and cost-effective grade. For marine and chemical processing applications in Johor's coastal environment, 5083 is the recommended specification. For maximum strength requirements, 7075 is the premium choice.

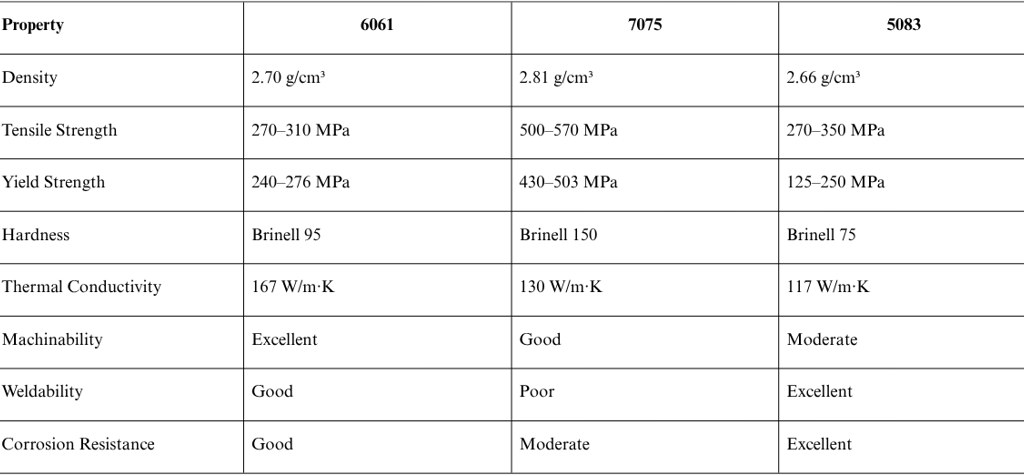

Key Properties

Key Advantages of Aluminium

Lightweight
At approximately 2.70 g/cm³, Aluminium is roughly one third the density of steel — delivering significant weight savings in structural and mechanical applications without compromising performance.

Corrosion Resistant
Aluminium naturally forms a thin, stable oxide layer on its surface that protects against corrosion without any additional surface treatment — making it inherently suitable for outdoor, marine, and chemically exposed environments.

Excellent Machinability
Aluminium machines exceptionally well — cutting speeds significantly faster than steel, excellent surface finish achievable, and minimal tool wear. This makes it the preferred choice for CNC machined precision components where productivity and cost-efficiency matter.

Thermally and Electrically Conductive
Aluminium's thermal conductivity makes it the material of choice for heat sinks, heat exchangers, and thermal management components in electronics and semiconductor manufacturing.

Fully Recyclable
Aluminium is 100% recyclable without any loss of properties — an increasingly important consideration in Malaysia's growing sustainability-conscious manufacturing sector.

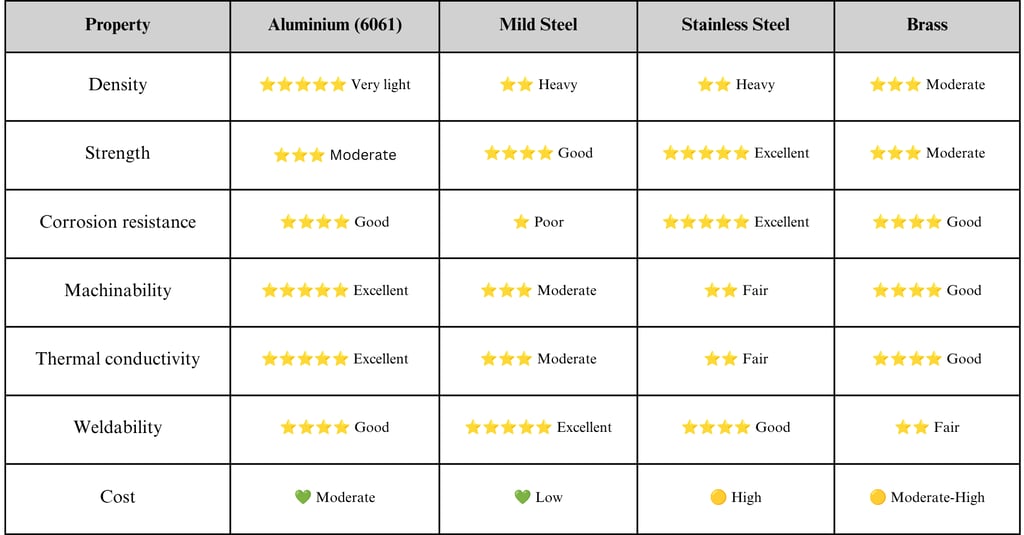

How Aluminium Compares to Similar Materials

Aluminium vs Mild Steel — Mild Steel offers higher strength and lower cost but is significantly heavier and prone to corrosion without surface treatment. Aluminium is the preferred choice wherever weight reduction, corrosion resistance, and machinability are priorities — particularly in precision engineering, electronics, and any application where rust-free performance is required without painting or coating.

Aluminium vs Stainless Steel — Stainless Steel offers superior strength and corrosion resistance but at significantly higher cost, weight, and machining difficulty. Aluminium is specified where weight and machinability are critical and the corrosion environment is moderate. Stainless Steel is reserved for the most chemically aggressive environments or highest strength requirements.

Aluminium vs Brass — Brass offers better machinability for small precision components, superior electrical conductivity for connector applications, and better performance in certain corrosive environments. Aluminium is significantly lighter and more cost-effective for larger structural components, enclosures, and heat management applications.

Common Applications

Aluminium's outstanding combination of light weight, corrosion resistance, machinability, and thermal conductivity makes it the most universally applied non-ferrous metal across Malaysian industrial and commercial sectors:

Precision engineering and CNC machining — machine frames, fixture plates, jigs, brackets, housings, and precision machined components
Semiconductor manufacturing — equipment frames, heat sinks, precision fixtures, cleanroom equipment components, thermal management parts
Electronics and electrical — heat sinks, LED housings, PCB enclosures, electrical panel components, busbar systems
Automotive — engine components, transmission housings, structural brackets, heat exchangers, lightweight structural parts
Marine — boat hulls, deck fittings, marine structural components, offshore equipment (5083 grade)
Construction and architecture — window frames, curtain wall systems, structural profiles, decorative panels
Food processing — food contact equipment frames, conveyor structures, processing equipment components

Why Choose Us

We stock Aluminium plate and rod in 6061 and other grades across a comprehensive range of sizes, available for immediate dispatch from our Johor base with nationwide delivery. Whether you need 6061 Aluminium plate for a precision CNC machining project or 5083 marine grade plate for a coastal fabrication, we supply with consistent quality, competitive pricing, and fast turnaround.
