PC (Polycarbonate)

Overview

Polycarbonate, commonly abbreviated as PC, is one of the toughest and most impact resistant transparent engineering plastics available. Combining exceptional mechanical strength with outstanding optical clarity, PC occupies a unique position in engineering materials — delivering the see-through visibility of glass with a level of impact resistance that glass simply cannot match.

PC is virtually unbreakable under normal industrial conditions — it can absorb impacts up to 250 times greater than glass and 30 times greater than acrylic of the same thickness without shattering. This extraordinary toughness, combined with good heat resistance, dimensional stability, and ease of fabrication, makes PC the material of choice wherever safety, visibility, and structural integrity must coexist in a single material.

In Malaysia's manufacturing and industrial sector, PC is heavily specified for machine guarding, safety shields, and protective enclosures — applications where workplace safety regulations require physical barriers that allow operators to monitor machinery without interrupting production. With Malaysia's Department of Occupational Safety and Health (DOSH) enforcing increasingly stringent machine guarding requirements across factories and manufacturing facilities, demand for quality polycarbonate sheet has grown consistently alongside the country's expanding industrial base.

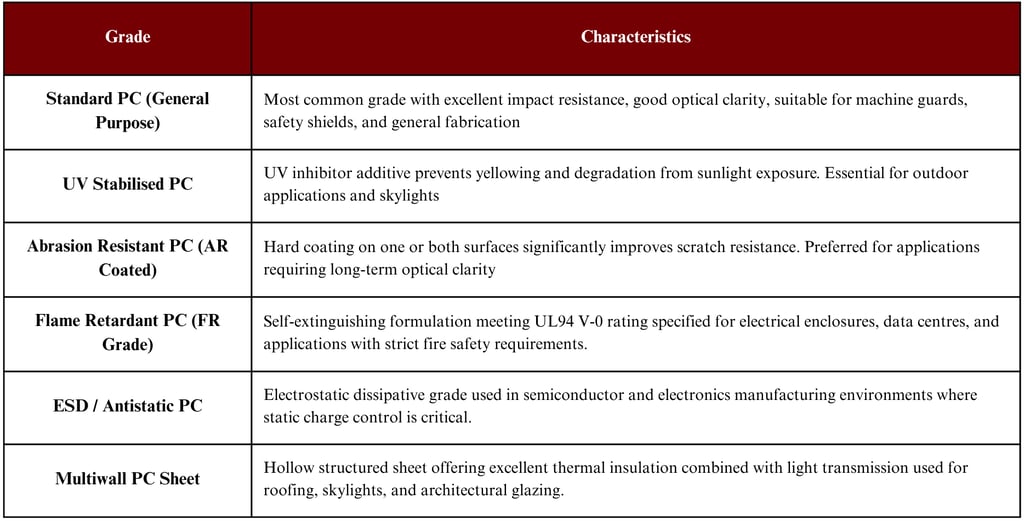

Available Grades

For industrial machine guarding and safety applications, Standard or AR Coated PC is the most commonly specified grade. For data centre and electrical enclosure applications in Johor's growing tech sector, Flame Retardant PC is increasingly in demand. For semiconductor and electronics factory applications, ESD grade PC is the appropriate specification.

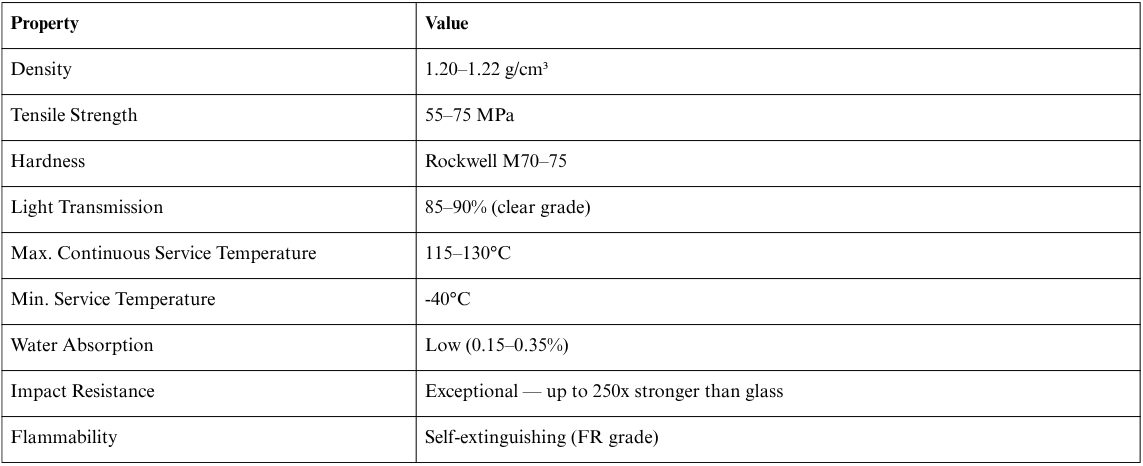

Key Properties

Temperature Resistance

PC offers significantly better heat resistance than acrylic, making it suitable for more demanding thermal environments.

• Continuous service temperature: Up to 115–130°C depending on grade

• Short term peak temperature: Up to 145°C

• Low temperature performance: Retains exceptional impact resistance down to -40°C — one of the few transparent materials that remains tough in cold environments

• Not recommended for: Continuous exposure above 130°C — consider PEEK or PSU for higher temperature transparent or structural applications

• Important note: While PC handles heat better than acrylic, prolonged outdoor UV exposure without UV stabilisation will cause yellowing and embrittlement over time — always specify UV stabilised grade for outdoor applications

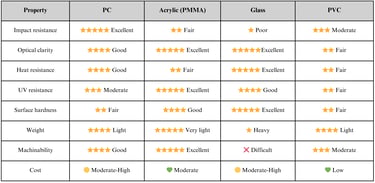

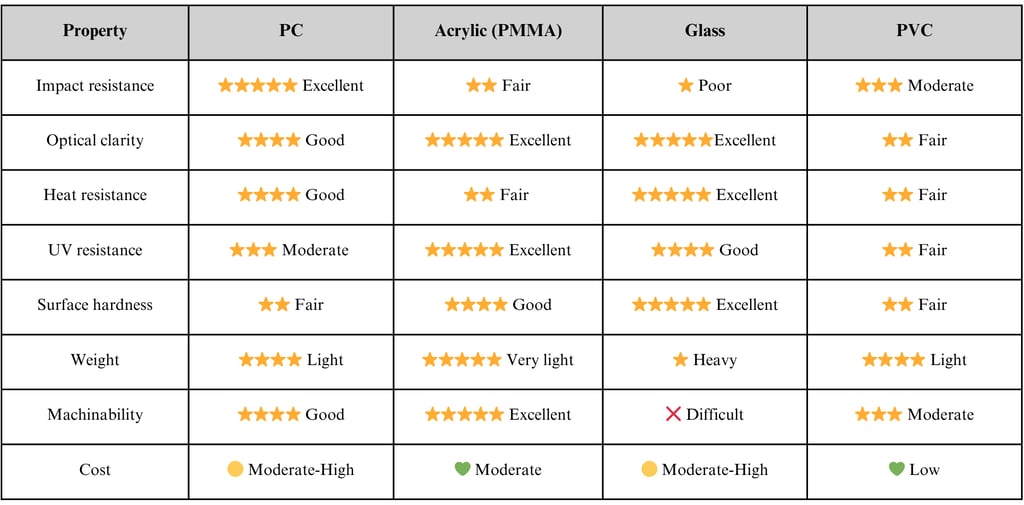

How PC Compares to Similar Materials

PC vs Acrylic — The definitive comparison for transparent engineering plastics. PC is the clear winner on impact resistance, heat resistance, and low temperature toughness — making it the only appropriate choice for safety critical applications. Acrylic wins on optical clarity, surface hardness, UV resistance, and cost — making it preferred for display, signage, and aesthetic applications where impact protection is not the primary concern. For machine guards and safety shields — always PC. For display counters and signboards — usually Acrylic.

PC vs Glass — PC is up to 250 times more impact resistant than glass at half the weight, and far easier to cut, drill, and fabricate on site. Glass offers superior scratch resistance, optical clarity, and heat tolerance but cannot match PC's safety performance in industrial environments. For machine guarding, safety barriers, and protective screens — PC is the only practical choice.

Common Applications

PC's unmatched combination of impact resistance, optical clarity, and thermal stability makes it the benchmark transparent safety material across Malaysian industrial and commercial sectors:

• Machine guarding — safety guards, inspection windows, protective shields on CNC machines, presses, and automated equipment

• Safety and security — riot shields, vandal resistant glazing, security screens, bank teller screens

• Data centres and electrical enclosures — FR grade PC panels, server room inspection windows, electrical cabinet viewing panels

• Semiconductor and electronics — ESD grade PC for cleanroom equipment, static sensitive environment barriers

• Construction and architecture — skylights, canopy roofing, greenhouse panels, noise barrier walls

• Automotive — headlight lenses, instrument panel covers, interior trim components

• Medical — sterilisable equipment housings, incubator panels, protective screens

Why Choose Us

We stock standard and speciality grade Polycarbonate sheet and rod in a comprehensive range of sizes, available for immediate dispatch from our Johor base with nationwide delivery. With Malaysia's factory safety regulations driving consistent demand for quality machine guarding materials, and Johor's rapidly expanding data centre and semiconductor sectors requiring FR and ESD grade PC, we maintain reliable stock availability across all major grades.

Whether you need standard clear PC sheet for a machine guard fabrication or flame retardant PC for a data centre enclosure, we supply with competitive pricing and fast turnaround.

📲 Contact us for pricing, availability, and custom sizing.
