PFA (Perfluoroalkoxy Alkane)

The benchmark ultra-high purity fluoropolymer for semiconductor chemical delivery lines, HF handling systems, and demanding wet process applications. PFA delivers PTFE-equivalent chemical resistance up to 260°C with full transparency and melt processability. Available in Virgin and standard grades in sheet and rod form. Ready stock in Johor, Malaysia with nationwide delivery.

Lim

5/19/20264 min read

Overview

Perfluoroalkoxy Alkane, universally known as PFA, is a premium melt-processable fluoropolymer that combines the extraordinary chemical resistance and thermal stability of PTFE with a critical additional advantage — it can be processed using conventional thermoplastic techniques such as extrusion, injection moulding, and blow moulding. This processability makes PFA the material of choice wherever PTFE's chemical and thermal performance is required but in geometries and forms that PTFE's non-melt-processable nature cannot accommodate.

PFA occupies the highest tier of engineering fluoropolymers alongside PTFE — offering virtually identical chemical resistance and thermal performance, but with superior transparency, better stress crack resistance, and the ability to be fabricated into complex tubing, fittings, valves, and intricate components that PTFE cannot match in practical manufacturing terms.

In Malaysia's semiconductor manufacturing sector — one of the most rapidly expanding industrial segments across Johor and Penang — PFA is among the most critically specified ultra-high purity materials. Its exceptional purity, virtually zero extractables, and absolute chemical inertness make it the benchmark material for ultra-pure chemical delivery systems, high purity fluid handling, and the most demanding wet process applications in semiconductor fabs where even trace contamination can destroy an entire production batch.

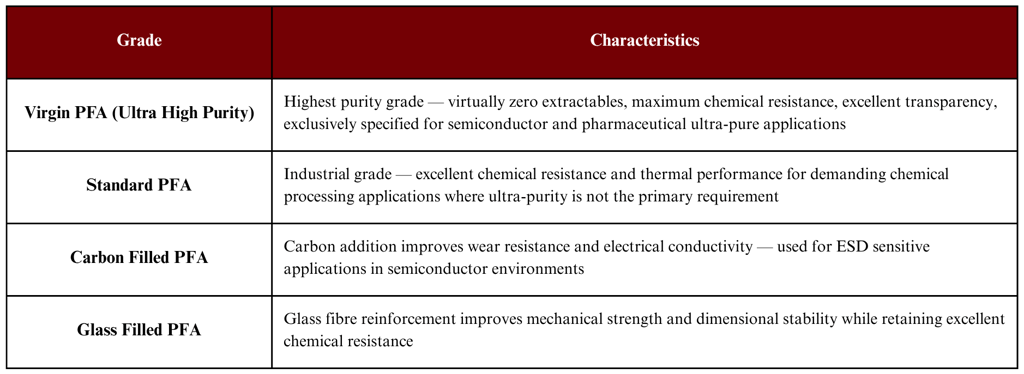

Available Grades

For semiconductor, pharmaceutical, and ultra-pure chemical handling applications, Virgin PFA is the only acceptable specification — any other grade introduces unacceptable contamination risk. For general high-performance chemical processing, Standard PFA delivers outstanding performance at a more accessible price point.

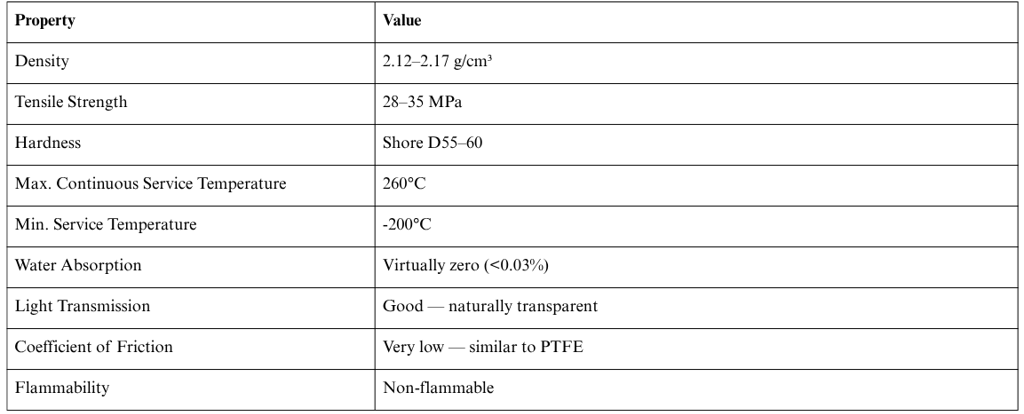

Key Properties

Temperature Resistance

PFA matches PTFE's extraordinary temperature performance — one of very few engineering plastics rated for both extreme heat and cryogenic service simultaneously.

Continuous service temperature: Up to 260°C — equal to PTFE and far exceeding any other common engineering plastic
Short term peak temperature: Up to 300°C for brief periods
Low temperature performance: Retains full chemical resistance and flexibility down to -200°C — suitable for cryogenic fluid handling applications
Thermal stability: Exceptional long-term thermal stability with no degradation or embrittlement over extended service at elevated temperatures
Not recommended for: Exposure to molten alkali metals or elemental fluorine at high temperatures — the only conditions that meaningfully attack PFA under extreme circumstances

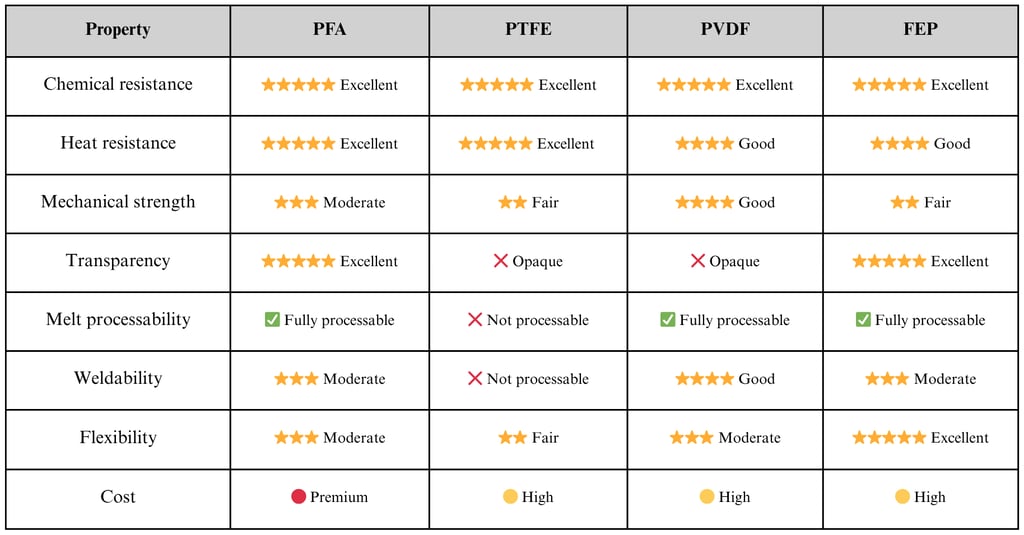

How PFA Compares to Similar Materials

PFA vs PTFE — PFA and PTFE offer virtually identical chemical resistance and temperature performance, but differ fundamentally in processability. PTFE cannot be melt processed and must be machined from solid stock — limiting the complexity of achievable geometries. PFA can be extruded into tubing, injection moulded into fittings, and blow moulded into complex shapes — making it the practical choice for fluid handling systems, valves, and intricate components. For flat sheet and rod stock machined into custom components, PTFE remains the more cost-effective choice.

PFA vs PVDF — Both are premier fluoropolymers for semiconductor applications, but serve different roles. PVDF offers superior mechanical strength, is fully weldable into fabricated tank structures, and is more cost-effective — making it the standard specification for wet bench fabrication and chemical storage tanks. PFA is specified for the most demanding ultra-pure fluid delivery lines, heated chemical transfer, and applications where PVDF's slightly lower chemical resistance or temperature limit is a concern.

PFA vs FEP — PFA and FEP are both melt-processable transparent fluoropolymers with similar chemical resistance. PFA handles higher continuous temperatures (260°C vs 200°C for FEP) and has better stress crack resistance. FEP offers superior flexibility, particularly at low temperatures, and is slightly lower in cost. For high-temperature chemical lines, PFA is preferred. For flexible tubing and lower-temperature applications, FEP is the more cost-effective choice.

Common Applications

PFA's unique combination of PTFE-equivalent chemical resistance, 260°C thermal stability, transparency, and melt processability makes it irreplaceable in the most demanding high-purity industrial applications:

Semiconductor manufacturing — ultra-pure chemical delivery lines, HF handling systems, heated acid transfer tubing, wafer processing equipment, wet bench fluid systems, chemical distribution manifolds
Pharmaceutical and biotechnology — ultra-high purity process piping, sterile fluid transfer systems, bioreactor fluid lines, cleanroom chemical handling
Chemical processing — high-temperature chemical transfer lines, corrosive fluid handling systems, pump liners, valve components
Laboratory equipment — ultra-pure fluid handling, chemical resistant tubing, analytical instrument components, high-purity sample handling
Food and beverage — high-temperature process piping, steam handling, food contact fluid transfer systems
Electrical and electronics — high-temperature wire and cable insulation, electrical insulation components for extreme environments

Why Choose Us

We stock Virgin and standard grade PFA sheet and rod across a range of sizes, available for immediate dispatch from our Johor base with nationwide delivery. With Johor's semiconductor manufacturing sector expanding at an unprecedented pace — driven by global technology investments across Iskandar Malaysia — we understand the critical importance of reliable, high-purity PFA supply for the region's most demanding process applications.

Whether you need Virgin PFA sheet for a semiconductor chemical delivery system or standard grade PFA rod for a precision chemical processing component, we supply with consistent quality, competitive pricing, and fast turnaround.

📲 Contact us for pricing, availability, and custom sizing.
